Version 3.0.0 · Windows and macOS

Flexo plate ganging

Timarelo

Timarelo gangs 1-bit screened flexo plate TIFFs onto one plate and exports a single composite TIFF for the platesetter.

A plate that prints wrong costs far more than a plate that is refused.

Request a trial See the demo files

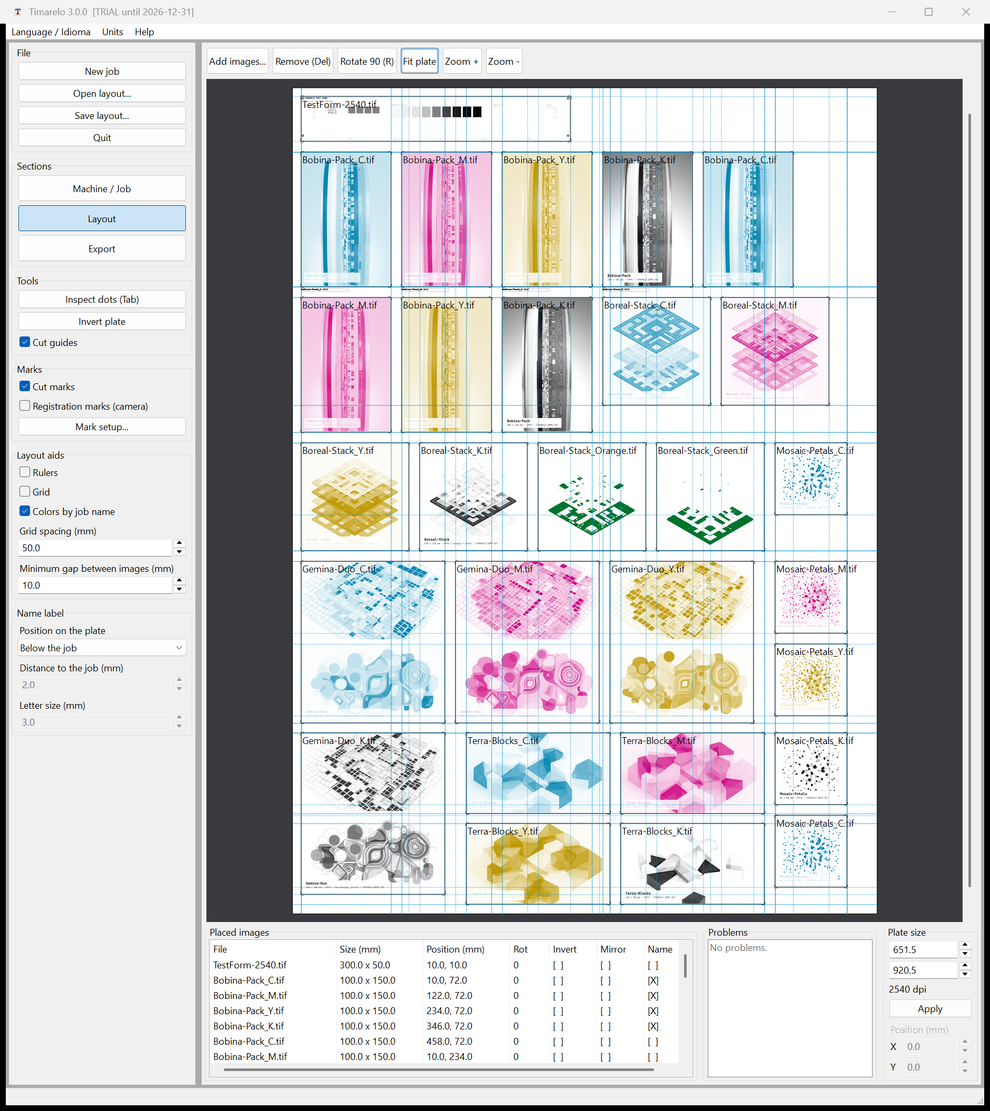

Timarelo main window with 28 jobs placed on one plate
5
Independent export checks
63x
Faster LEN import
8
Interface languages
12
Manual chapters built in

What Timarelo does

1
Import

Load the 1-bit screened TIFF separations from your RIP, or LEN (*.len) files, which Timarelo converts on import.

2
Arrange

Place the jobs on the plate. Drag, snap, rotate 90 degrees, mirror, or let auto-place find the first free spot for you.

3
Export

Export one composite TIFF. Timarelo verifies the exported file and refuses to hand over anything it cannot prove correct.

Timarelo never resamples your data. Every source pixel lands on the plate exactly as the RIP produced it.

Features

Ganging canvas

Drag, snap, rotate 90 degrees, mirror, and auto-place. Overlaps and jobs outside the plate are detected and listed as problems before export.

Exact pixels, always

An exact resolution match is placed 1:1. An exact half resolution is doubled 2x, pixel for pixel. Everything else is refused, with the reason stated. No resampling, ever.

Machine presets and fit check

Preset plate families from 400 to 2000, plus custom sizes up to 5000 x 5000 mm. An advisory fit check warns when a plate will not load in the platesetter.

Cut and registration marks

Corner cut marks plus camera registration marks in three shapes: circle, ring, and cross. A dedicated setup page shows a live preview with exact dimensions.

Name labels

Each job can carry its file name, rendered into the plate raster. Four positions, adjustable distance and letter size, always right-reading.

Layout aids

Rulers, grid, minimum gap warning, cut guides, and a separation colour view that tints each job C, M, Y, K, or spot from its file name.

Dot inspector

View the real plate pixels from 25 to 800 percent. Check the actual screened dot, the marks, and the labels before you image the plate.

Polarity control

Invert single files or export the whole plate as a negative, marks included. Layouts are saved as .layout.json files and every file is re-checked on open.

Private by design

Timarelo makes no network connection at all. Licences are offline files. It runs inside closed prepress networks without any changes.

Verified export

Refuse rather than ruin

After export, Timarelo reads the file back from disk and runs five independent checks. If any check fails, Timarelo deletes the file. If all pass, it writes a verification report and a layout sidecar next to the plate. An unverified plate can never reach the platesetter.

  • V1

    File structure. The exported TIFF is opened again and its structure is checked field by field.

  • V2

    Resolution. The plate resolution must match the job resolution exactly.

  • V3

    Bit-exact compare. Every placed region is compared bit by bit against its re-decoded source file.

  • V4

    Pixel census. The number of black pixels must equal the model arithmetic.

  • V5

    Marginals. Row and column sums are checked as an independent second proof.

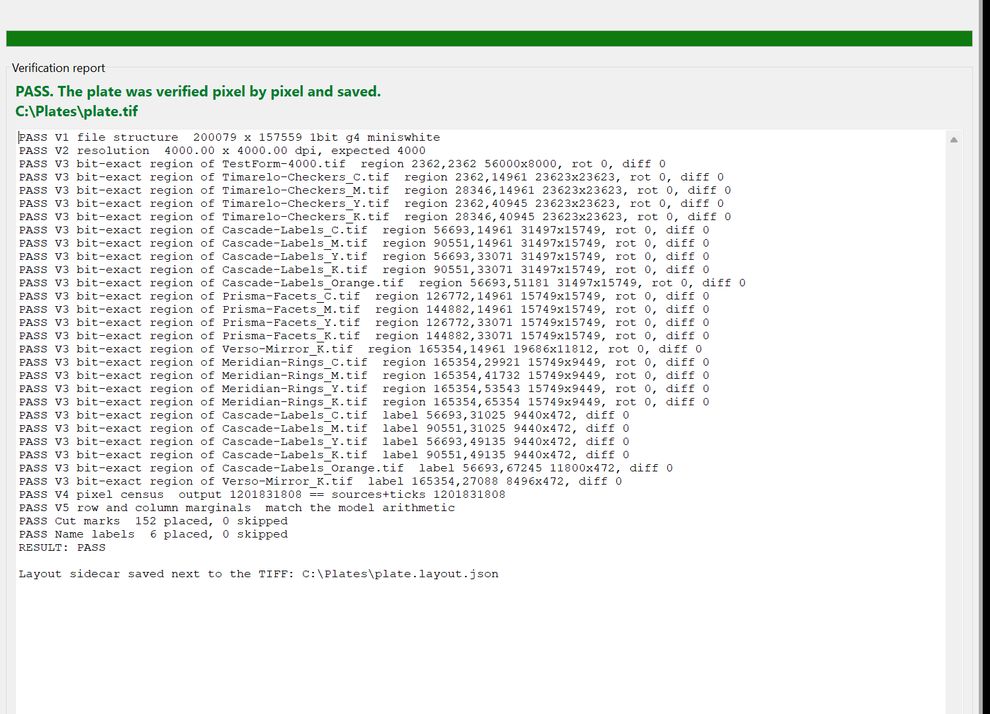

Timarelo verification report with the result PASS

A PASS report after export verification

Screenshots

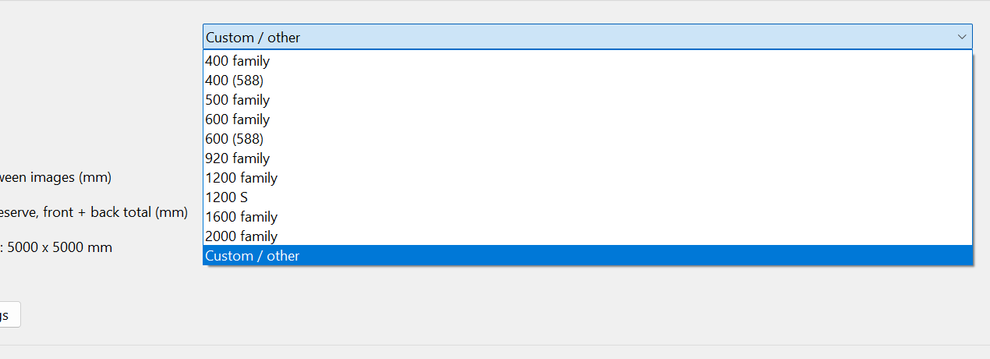

Machine preset list
Machine presets

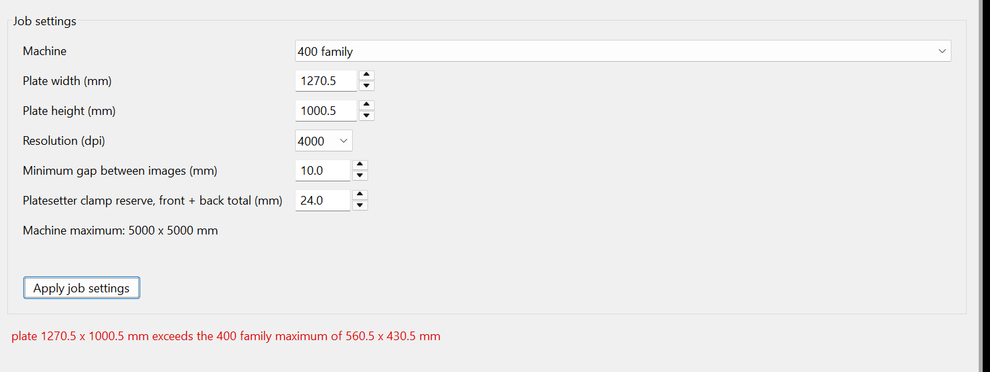

Platesetter fit check warning
Platesetter fit check

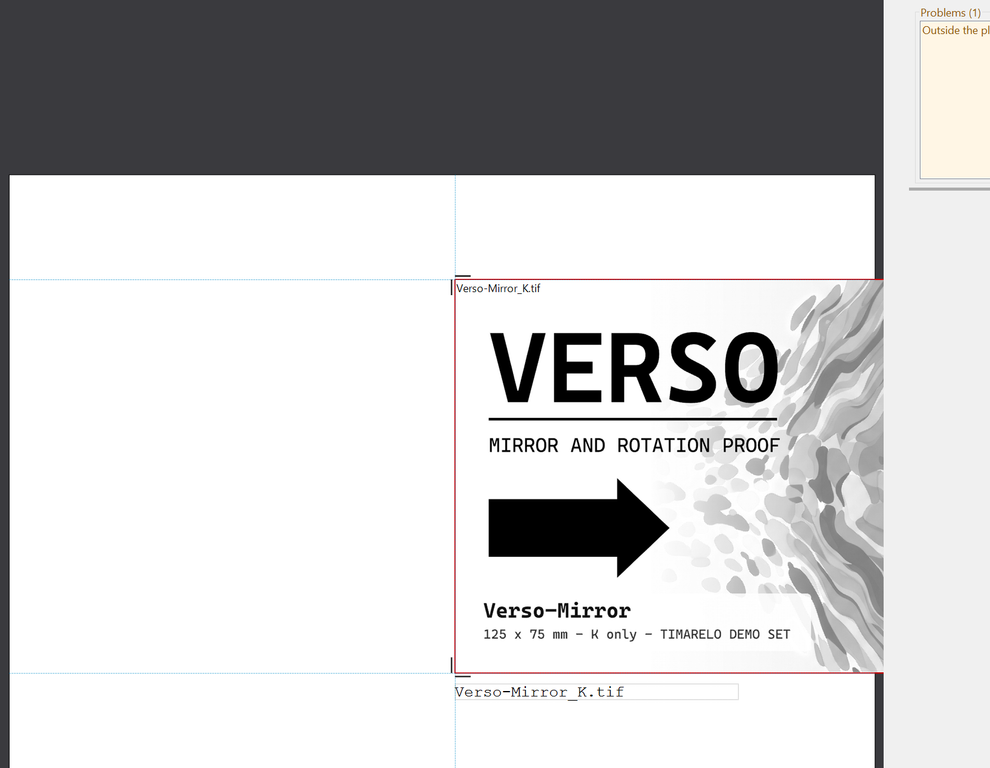

A job outside the plate marked as a problem
Problem detection

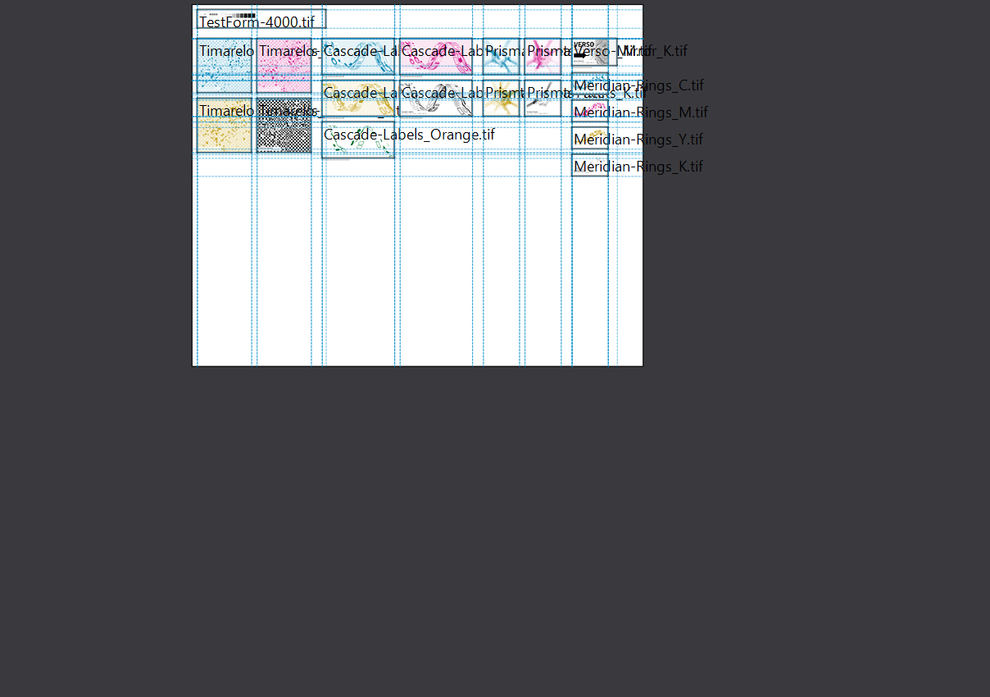

Separation colour view
Separation colour view

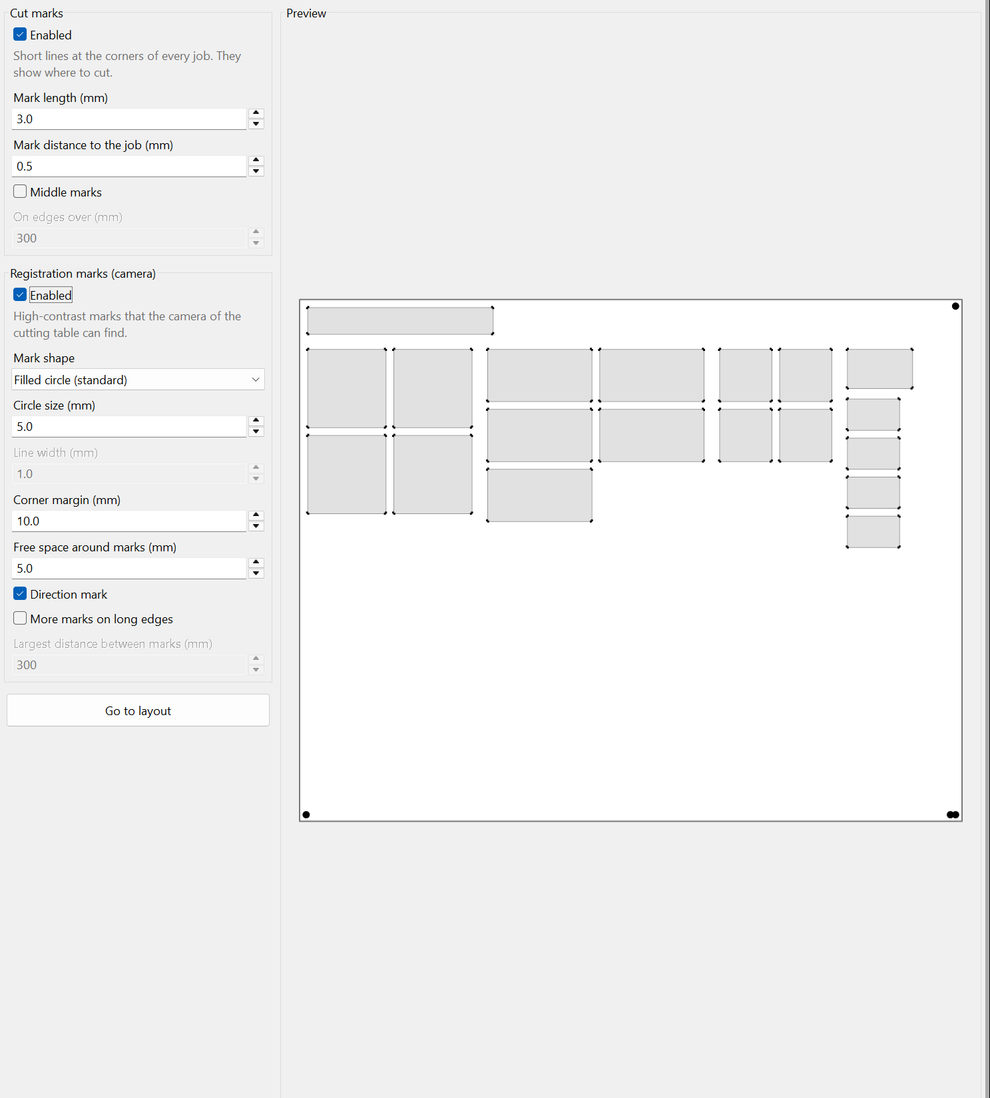

Mark setup page with live preview
Mark setup

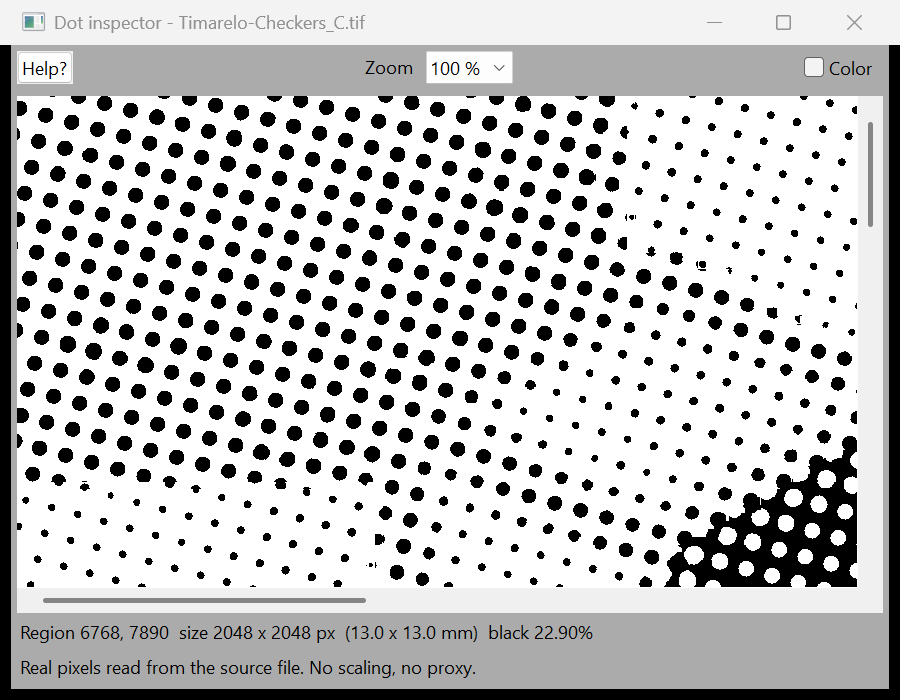

Dot inspector showing screened dots
Dot inspector

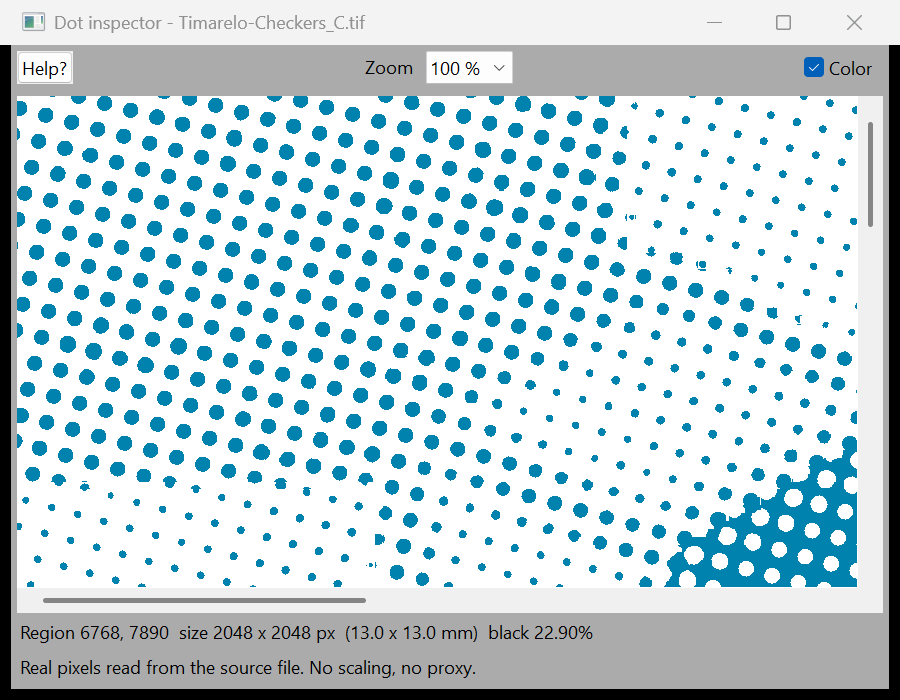

Dot inspector with separation tints
Inspector with tints

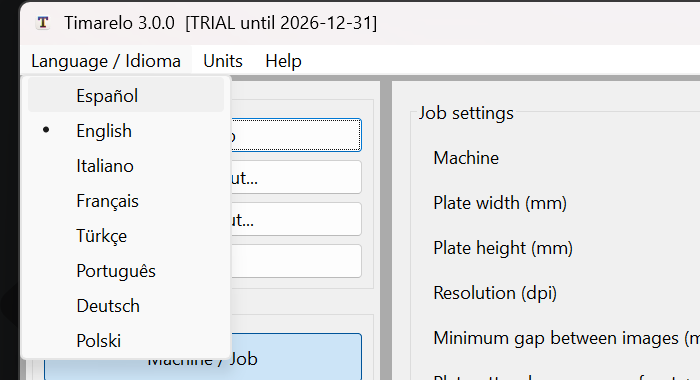

Language menu with eight languages
Eight languages
Timarelo splash screen
Timarelo 3.0.0

Built for large plates

0.32 s

LEN import of a 2.6 gigapixel file. 55 to 63 times faster than the previous generation tool.

1.7 s

Export plus full verification of an 8 gigapixel plate. 9 to 22 times faster.

8 s

A 31.5 gigapixel plate, exported and verified, in about eight seconds.

No special graphics hardware is needed. Timarelo uses graphics acceleration when it is available and produces identical results without it.

Demo files

Download real ripped 1-bit plate separations and test them in Timarelo. Without a licence, everything works except export, so you can evaluate the complete workflow free of charge. All files are original artwork created for this demo set.

Preview of the Timarelo Checkers demo artwork
37 MB
Plate set A, 4000 dpi

A full ganging session at 4000 dpi.

5 jobs, 18 separations: Cascade-Labels (CMYK plus an Orange spot), Timarelo-Checkers, Meridian-Rings, Prisma-Facets, and Verso-Mirror.

Download
Preview of the Bobina Pack demo artwork
27 MB
Plate set B, 2540 dpi

A second machine family at 2540 dpi, including extra spot separations.

5 jobs, 22 separations: Bobina-Pack, Boreal-Stack (CMYK plus Orange and Green), Gemina-Duo, Mosaic-Petals, and Terra-Blocks.

Download
Preview of the Prisma Facets demo artwork
2 MB
Resolution policy

The exact-pixel rule in action.

2000 dpi files that load on a 4000 dpi plate with exact 2x pixel doubling, and a 2400 dpi file that Timarelo refuses, with the reason shown.

Download
0.2 MB
Test forms

Pixel-exact technical strips for your platesetter.

TestForm-2540 and TestForm-4000, each as a final 1-bit TIFF plus a matching vector PDF.

Download
Under 1 MB
Layout files

Ready-made .layout.json files that rebuild the demo plates.

Six layouts. They need the plate zips and the test forms unzipped as described in the README.

Download

All TIFFs are 1-bit with G4 compression, exactly as a RIP delivers them. Each zip contains a README.txt with setup instructions.

Requirements

Platforms. Native application for Windows and macOS, with the same feature set on both.

Input. 1-bit screened TIFF separations (G4 or LZW) and LEN (*.len) files from your RIP.

Output. One composite 1-bit TIFF for the platesetter, plus a verification report and a layout sidecar.

Hardware. No special graphics hardware is needed. Graphics acceleration is used when available, with identical results without it.

Units. Millimetres or inches throughout, remembered between sessions.

Languages. English, Spanish, Italian, French, Turkish, Portuguese, German, and Polish. Interface, manual, and licence agreement are all localized.

Help. A 12-chapter user manual is built into the application, together with a mouse and keyboard reference.

Network. Timarelo makes no network connection at all. It runs inside closed prepress networks.

Licensing

Timarelo is licensed per computer with an offline licence file. Without a licence, every function works except export, so you can evaluate the complete workflow with the demo files above. Contact us for a trial licence or a quote.

Standard

Full ganging and verified export for the 1200 machine families and custom plates up to 1200 x 1200 mm.

LEN import

Adds direct import of LEN (*.len) files, converted to TIFF on import.

Large formats

Adds the 1600 and 2000 machine families and custom plates up to 1300 x 2100 mm.

Custom formats

Adds custom plate sizes up to 5000 x 5000 mm for special machines.

Request a trial or quote

Contact

Talk to us

Ask for a trial licence, a quote, or a demonstration. Tell us which platesetter and which plate sizes you work with, and we will answer with the right configuration for you.
